Database Testing

Database Testing is an important feature of the tool. It allows us to connect to any database and store and assert the results against datasheets.

This gives us an advantage of executing Web, API and Database actions all in one go in a single Test Flow

Set up Database Connection

  • Download and store the jdbc driver jar in lib/clib location

  • If you are using mysql database you need to download mysql-connector-j-X.jar from here.

  • If you are using oracle database you need to download ojdbcX.jar from here.

    X is the version of your choice

  • In order to connect to specific database from tool we need to provide values in Database Settings under Run Settings of the tool.

dbSettings

In Java if you were to manually connect, you would invariably use the following :

Class.forName("com.mysql.cj.jdbc.Driver");
Connection con = DriverManager.getConnection("jdbc:mysql://localhost:3306/productDB", "My_DB_UserName", "My_DB_Password");

## Query Editor

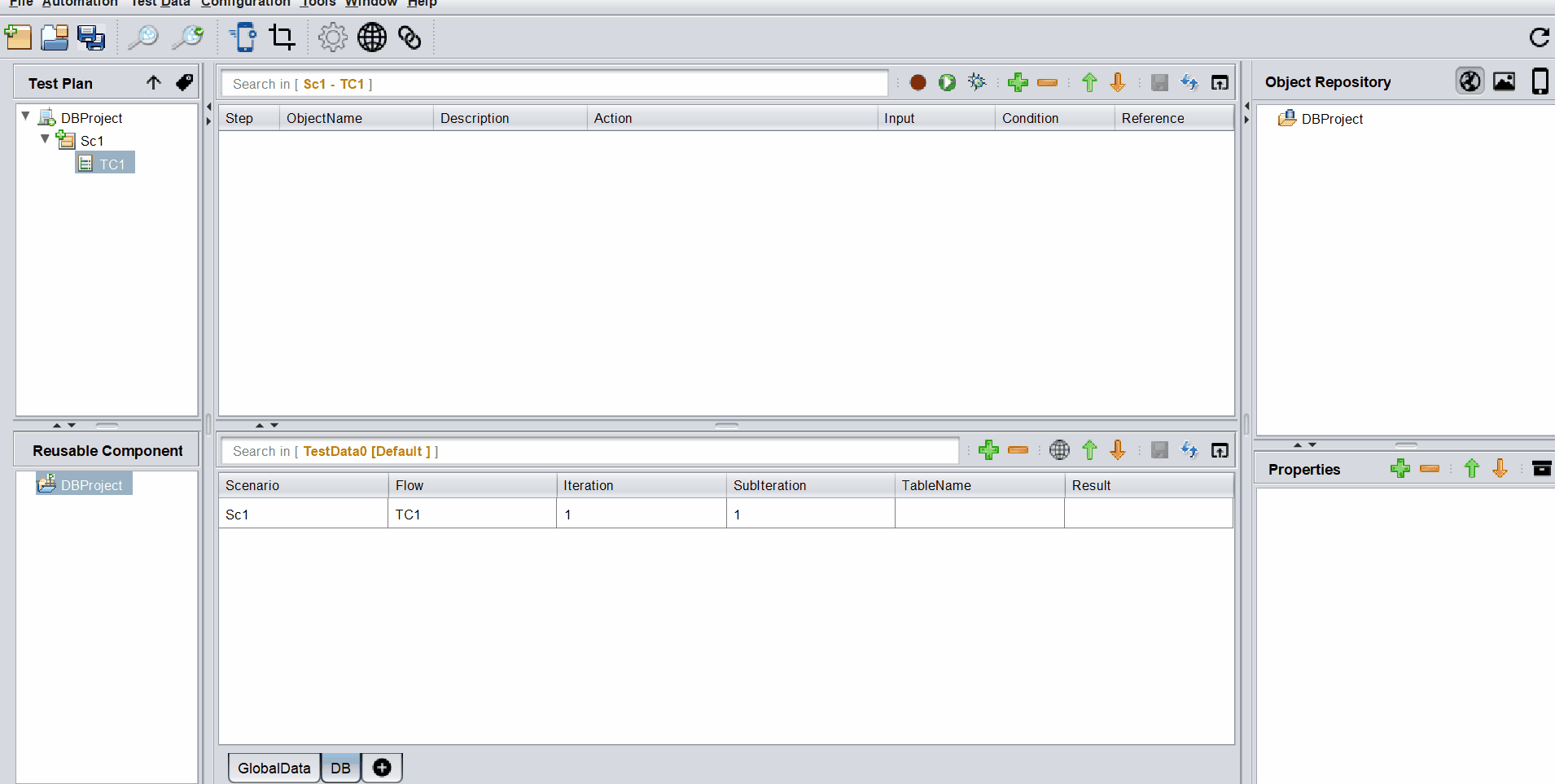

After the above setting is done, you can proceed with your first steps as shown below.

basic

Data Parameterization can be done using the built-in editor. If you mouse-hover on the Input column, corresponding to the DB steps, an option to open up the Editor comes up.

Inside this editor, we can write the Query and then parameterize it based on our needs.

If we press [ctrl] + [SPACE], the list of all available DataSheets : ColumnNames along with all user-defined variables show up. We can then select the appropriate item from where we want to parameterize.

We need to press [esc] to close the editor

editor The above image is a gif. So if its not moving, please reload the page

## Actions

There are 11 built-in Actions.

Please click the action-cloud below to check the details

actions
